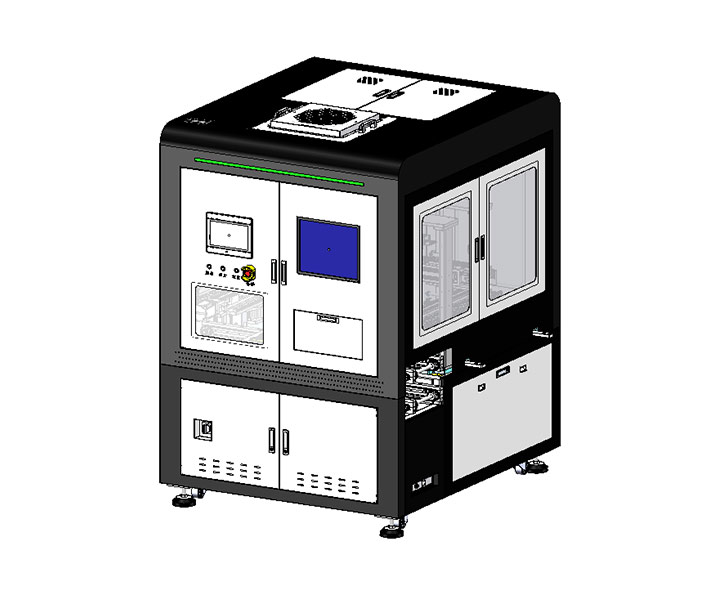

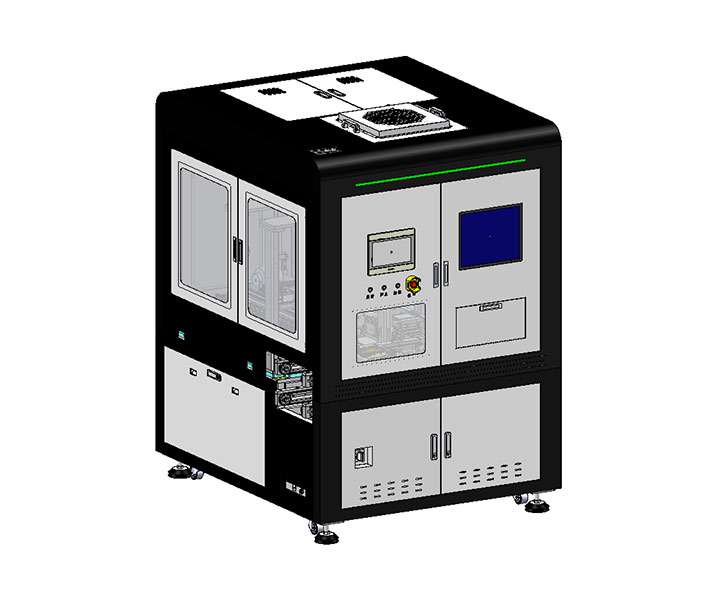

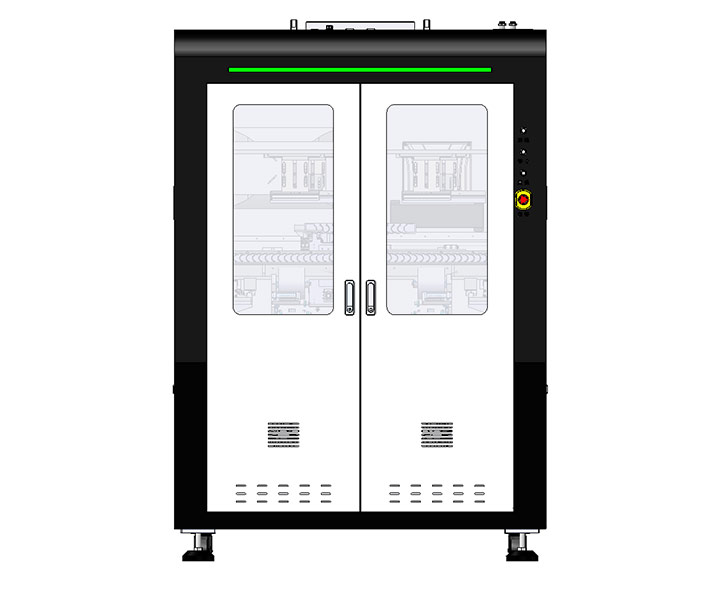

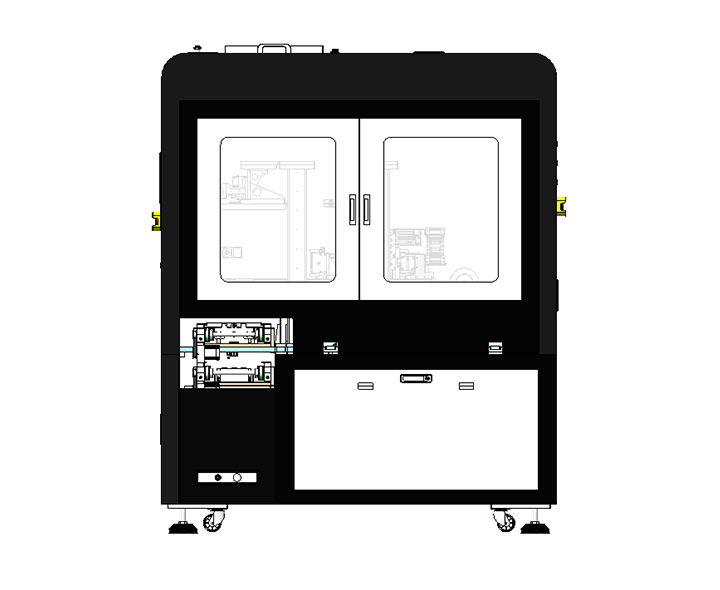

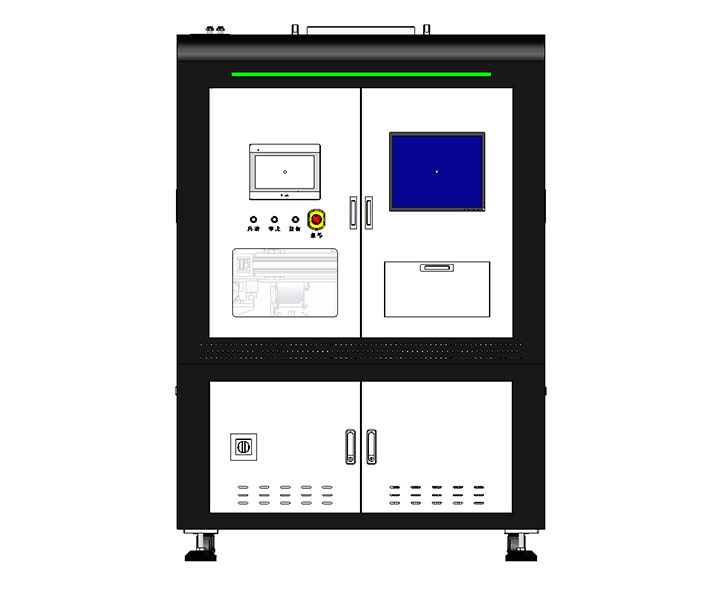

Automatic Laminating Machine
Mainly for the installation of auxiliary
materials for various 3C products.
  • 贴辅料设备也可单机使用，治具在单机台上下层皮带线循环，需要一个人在机台端部进行产品上下料作业
    The auxiliary materials paste equipment can also be used as a single machine, and the fixture circulates on the upper and lower leather conveyor belts of the single machine, requiring one person to perform product loading and unloading operations at the end of the machine
  • 可以前后对接上下料机，实现全自动贴装
    It can be connected to the loading and unloading machine in front and behind to achieve fully automatic mounting
  • 设备采用模块化设计，可以根据产品工艺和辅料数量进行自由拼接
    The equipment adopts modular design, which can be freely assembled according to the product craft and the quantity of auxiliary materials
Product Specification
设备尺寸 Equipment Size (L*W*H mm) 1400*1650*2000
设备重量 Equipment Weight (KG) 1200KG
设备功率 Equipment Power (KW) 4.5KW
额定电压 Rated Voltage（V） AC220V
气压 Air Pressure（MPa） 0.5-0.7 MPa
控制方式 Control Method PLC
良率 YIELD ≥99%
UPH ≥700PCS/H
设备贴装精度 Equipment installation accuracy ±0.1mm
