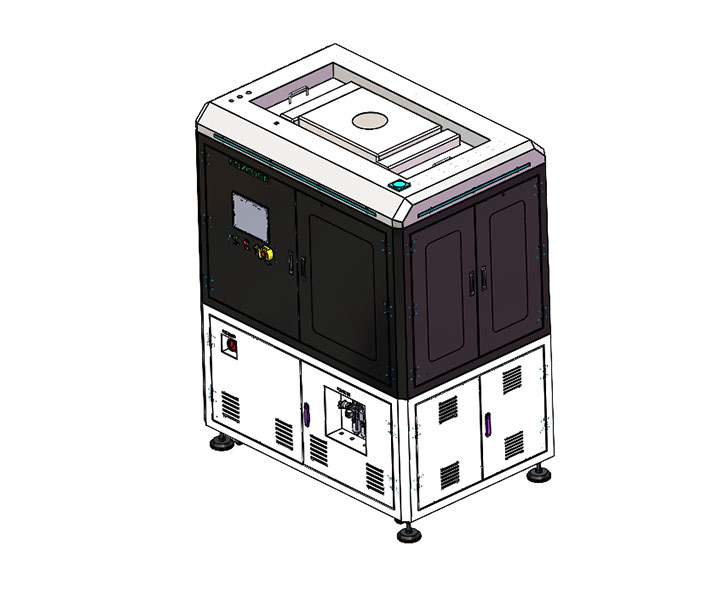

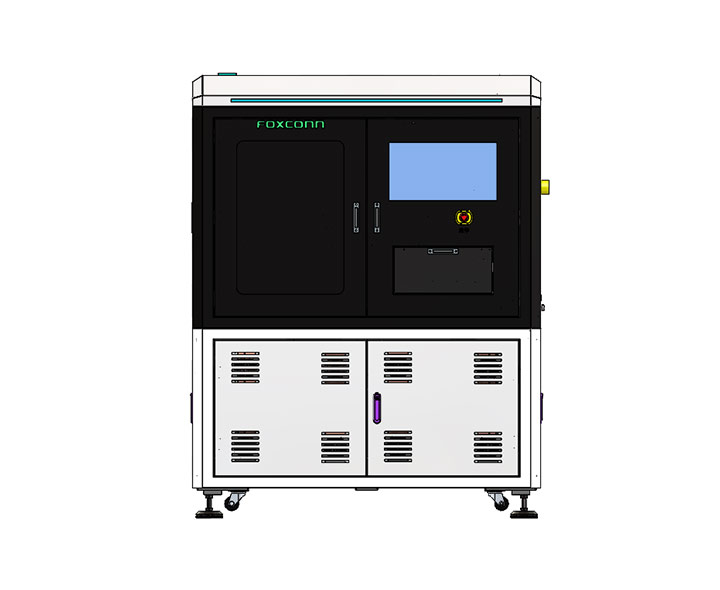

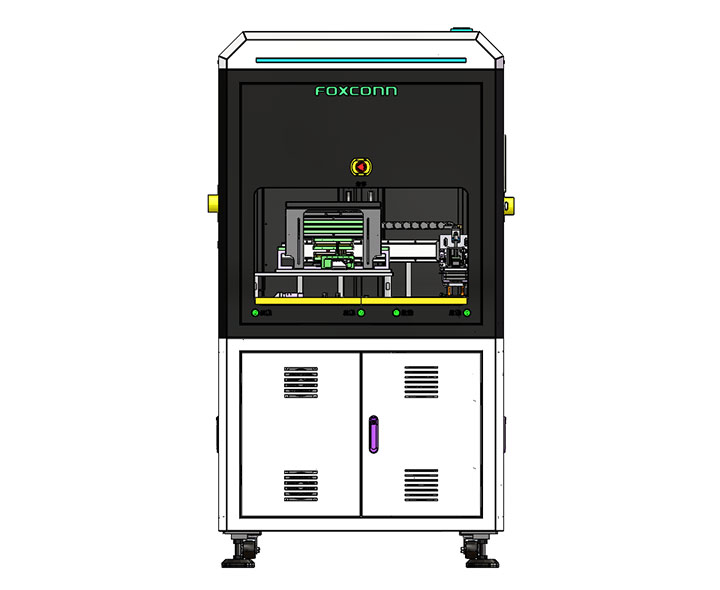

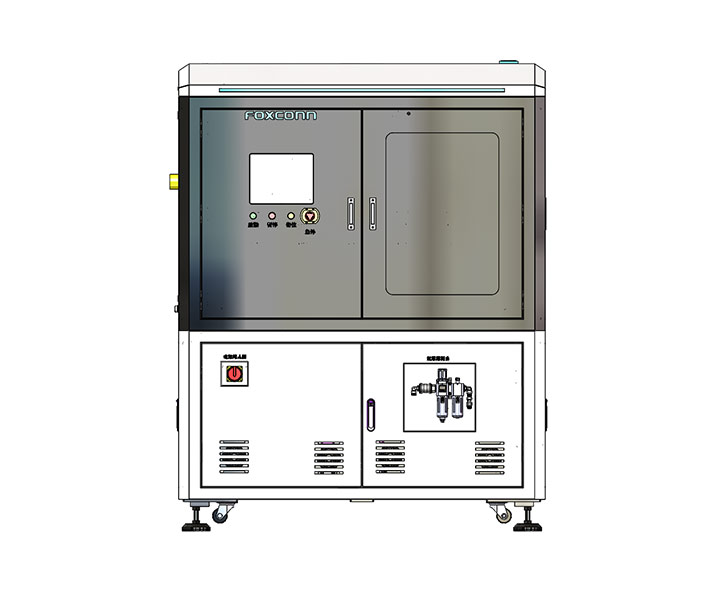

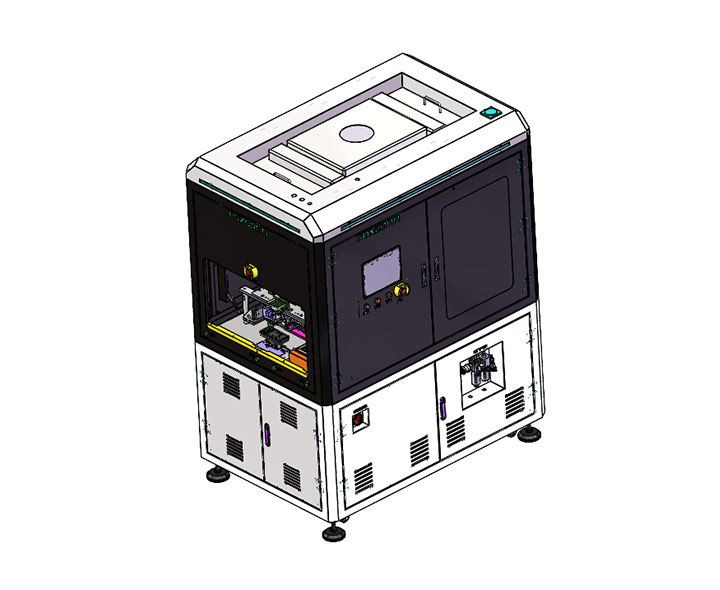

Hot Drill Detection Equipment
For the detection of defects in the
hot drilling position of mobile phone frames.
  • Hot drill detection equipment can be used for manual operation alone
  • It can be connected to the loading and unloading machine in front and back to achieve fully automatic loading and unloading detection
  • The device adopts modular design, which can be freely assembled according to the product craft and requirements
Product Specification
设备尺寸 Equipment Size (L*W*H mm) 2150*2050*2000
设备重量 Equipment Weight (KG) 1500KG
设备功率 Equipment Power (KW) 10KW
额定电压 Rated Voltage（V） AC220V
气压 Air Pressure（MPa） 0.5-0.7 MPa
控制方式 Control Method PLC控制系统 PLC control system
良率 YIELD ≥98%
UPH ≥500PCS/H
设备检测精度 Equipment detection accuracy ±0.02mm
Application Scenarios
