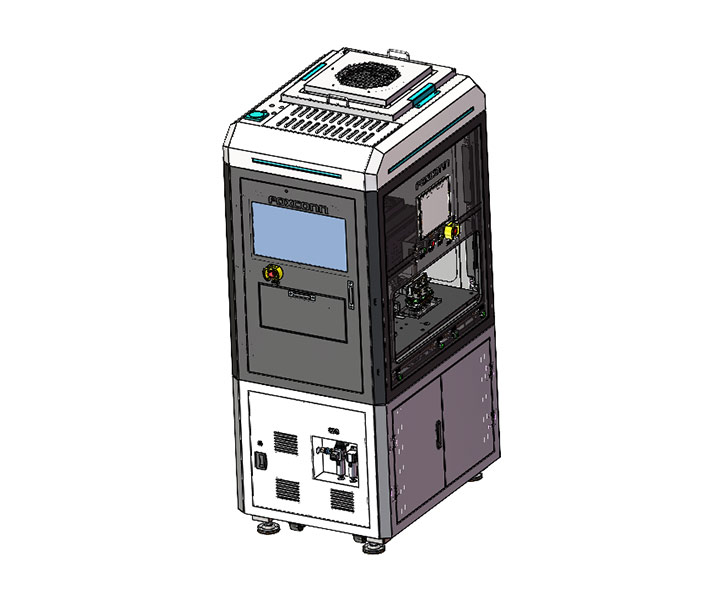

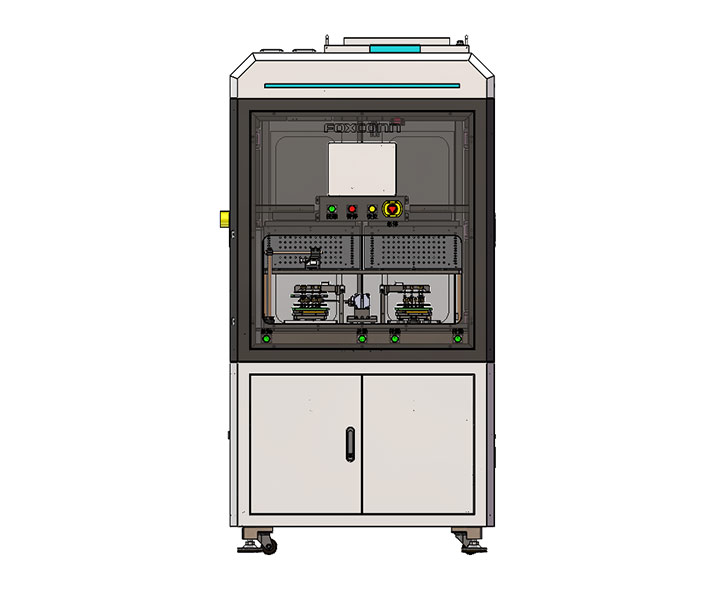

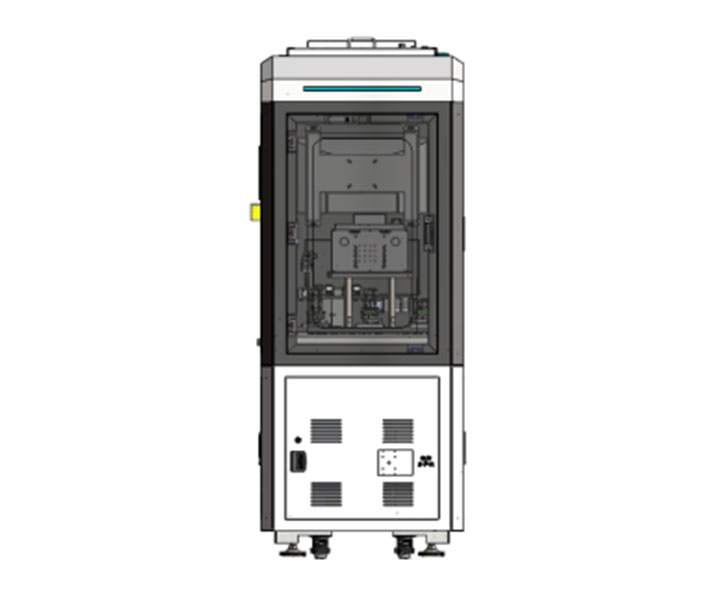

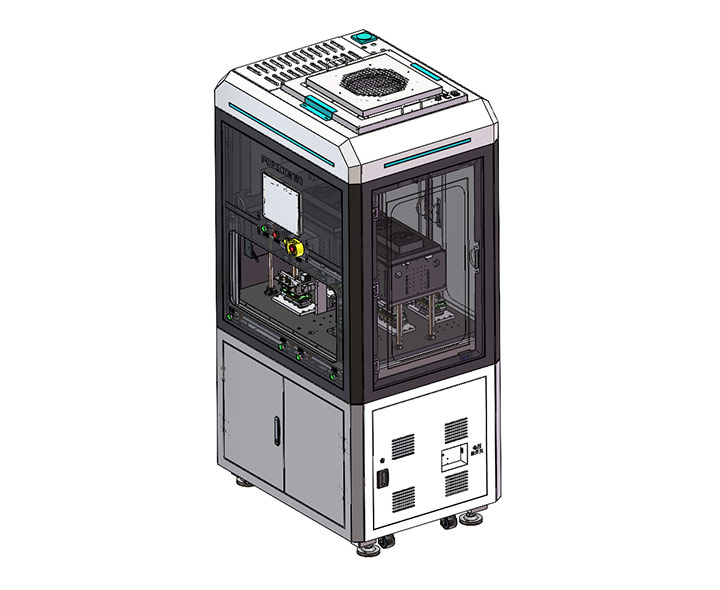

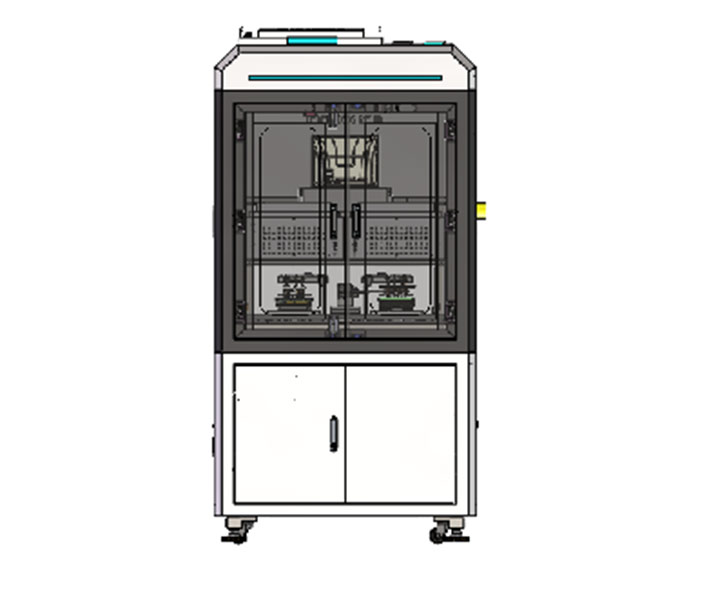

Threaded Hole Micro Detection Equipment
Detection of poor thread hole position
in the middle frame of mobile phones and tablets.
  • Microspur detection equipment can be manually operated on single machine
  • It can be connected to the loading and unloading machine in front and back to achieve fully automatic loading and unloading detection
  • The device adopts modular design, which can be freely assembled according to the product craft and requirements
Product Specification
设备尺寸 Equipment Size (L*W*H mm) 1100*1050*2000
设备重量 Equipment Weight (KG) 700KG
设备功率 Equipment Power (KW) 5KW
额定电压 Rated Voltage（V） AC220V
气压 Air Pressure（MPa） 0.5-0.7 MPa
控制方式 Control Method PLC控制系统 PLC control system
良率 YIELD ≥98%
UPH ≥600PCS/H
设备检测精度 Equipment detection accuracy ±0.02mm
Application Scenarios
