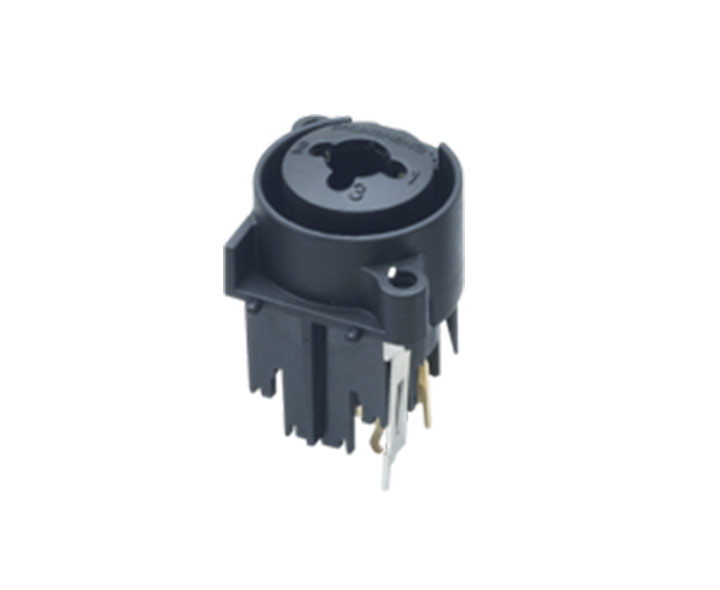

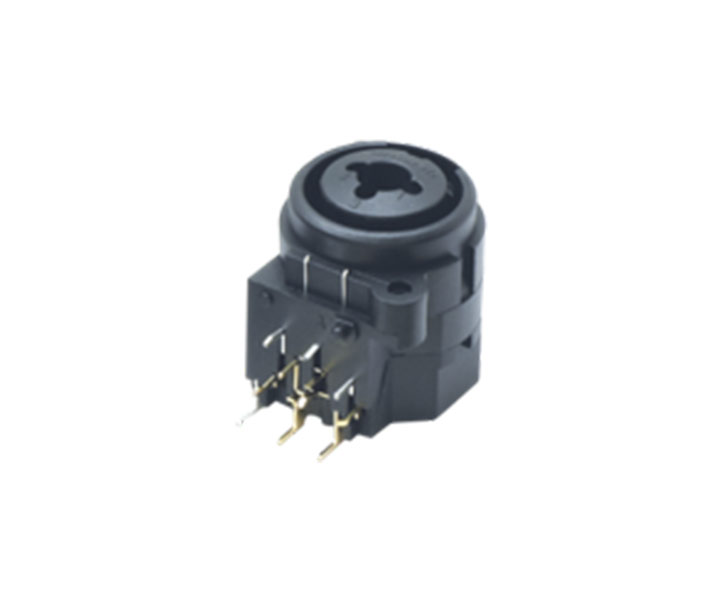

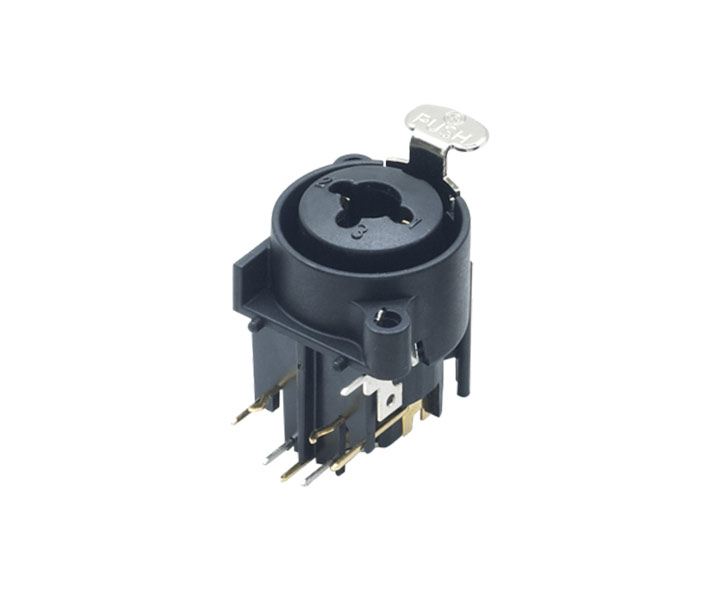

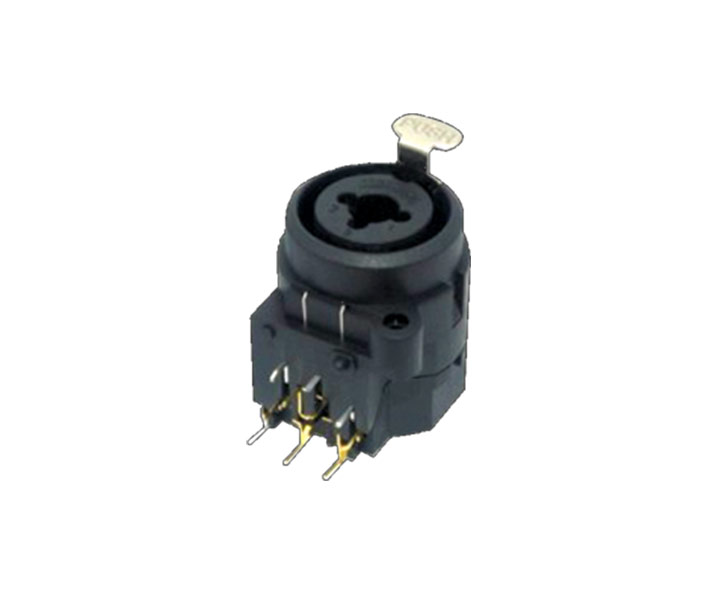

XLR Audio Combo Jack
The XLR Audio Combo Jack is an
XLR combination base connector
with an integrated 3-core XLR and 6.35mm Jack.
  • Balance microphone, line, and instrument inputs
  • With a reliable locking device, not easy to pull off
  • Separate ground contacts are connected to the housing and panel
  • One housing, two connectors
Product Specification
Rated Current  3A~7.5A
Contact Resistance  50mΩ Max
Insulation Resistance  500MΩ Min
Withstand Voltage        1500V AC
Insertion and Extraction Force  XLR:5N-50N，JCAK:5N_55N
Mechanical Life  XLR:1000次，JCAK:5000次
Eemperature Range  -20℃~+65℃
