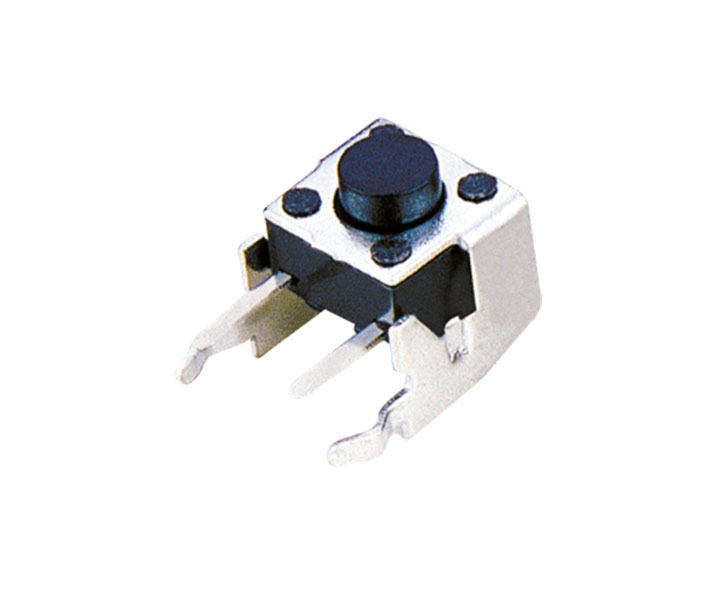

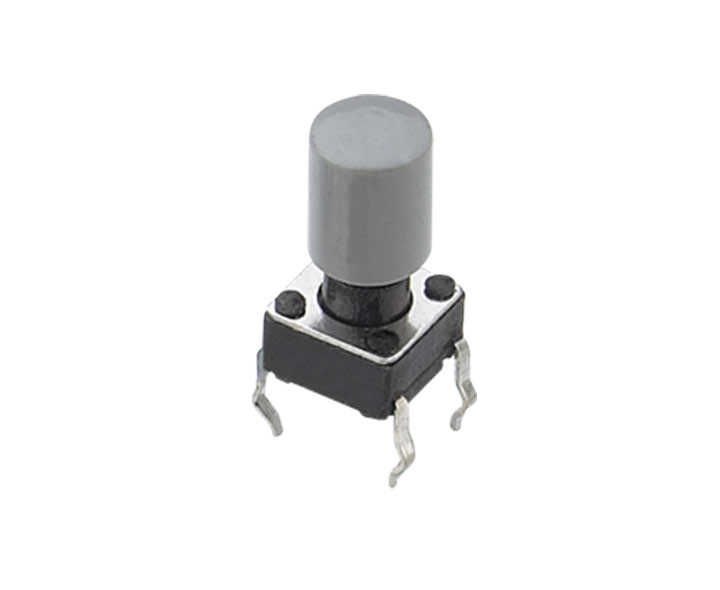

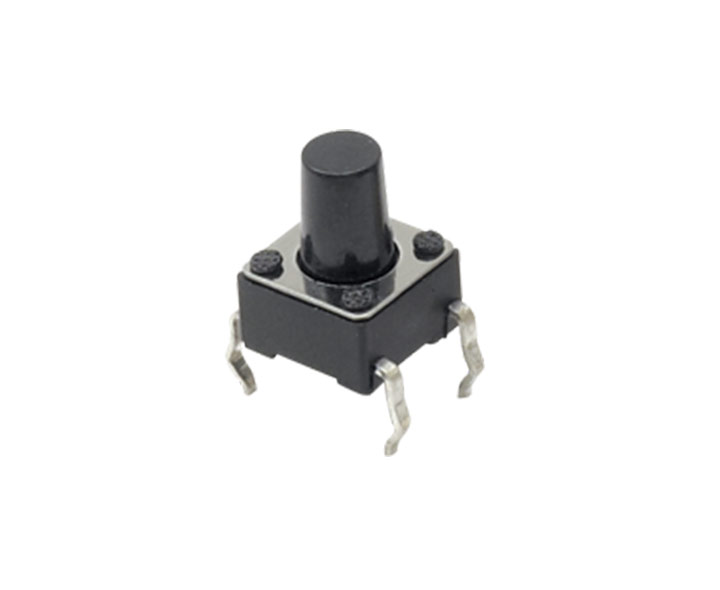

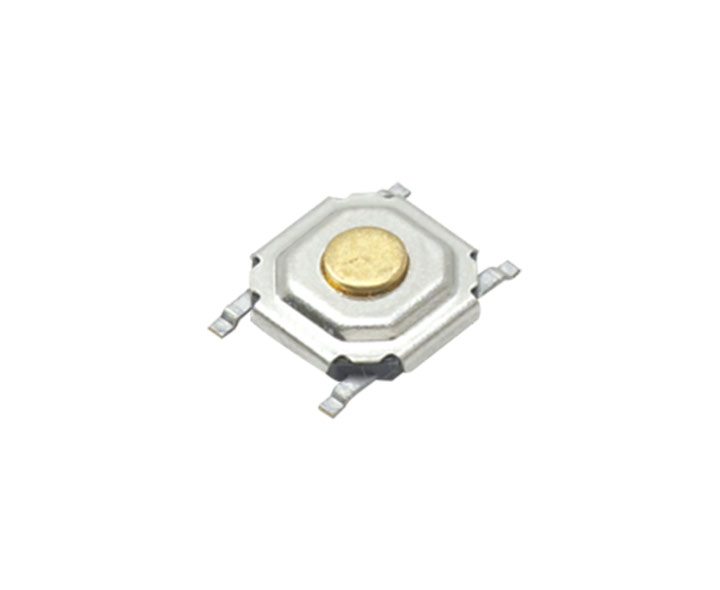

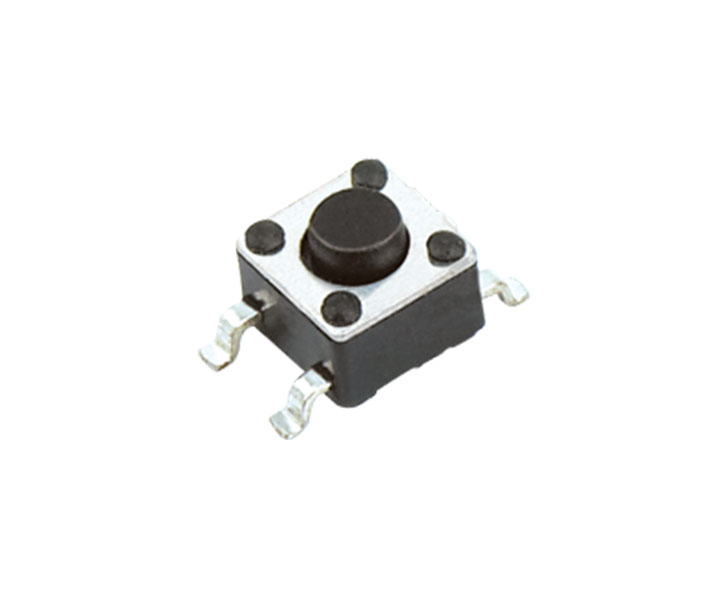

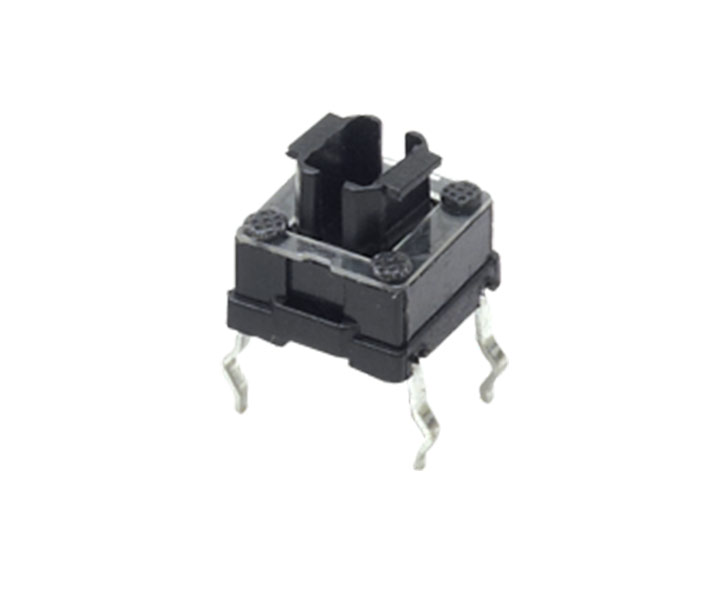

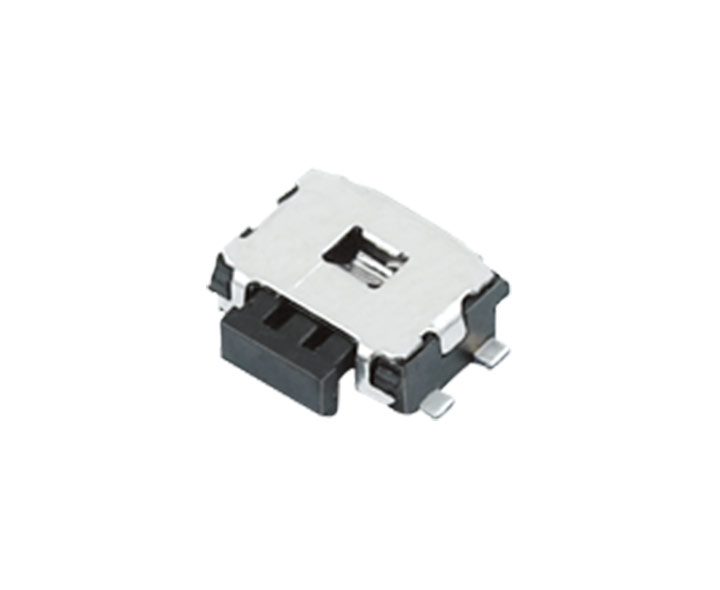

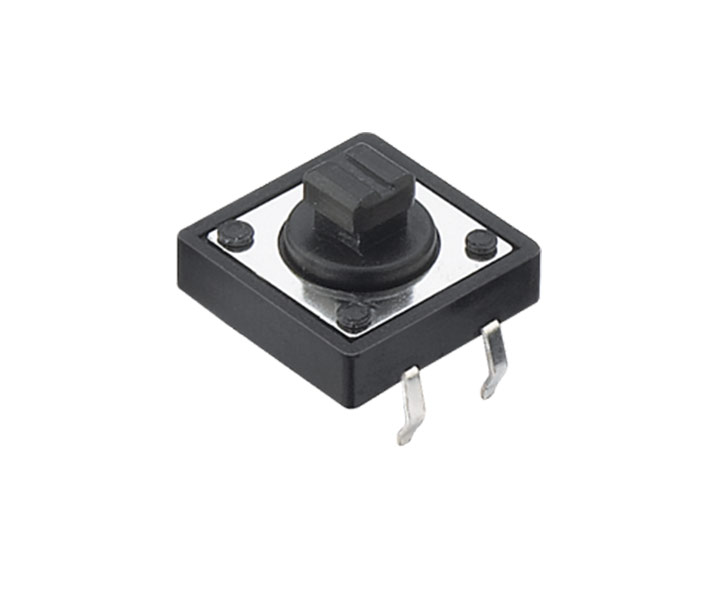

KFC TACK SWITCH
KFC TACK SWITCH is an electronic switch composed of insert, base,
spring, button and cover plate,It is activated by gently pressing the
switch button to make switch connect, and whenreleased, the switch
disconnects. Its internal structure relies on the movement of a metal
spring under pressure to achieve the on/off function.
  • Precise operating force tolerance
  • Low contact resistance
  • Good operating feel
  • Diverse specifications
Product Specification
额定电流 Rated Current 50mA
接触电阻 Contact Resistance 30mΩ Max.
绝缘电阻 Contact Resistance 100MΩ Min.
耐压 Withstand Voltage 250V AC.
操作力 Operating Force 160gf/200gf/260gf
按压行程 Press Stroke 0.15±0.1/0.25+0.1mm/0.35±0.15
机械寿命 Mechanical Life 100000次.
温度范围 Temperature Range  -20℃~+70℃
Application Scenarios
