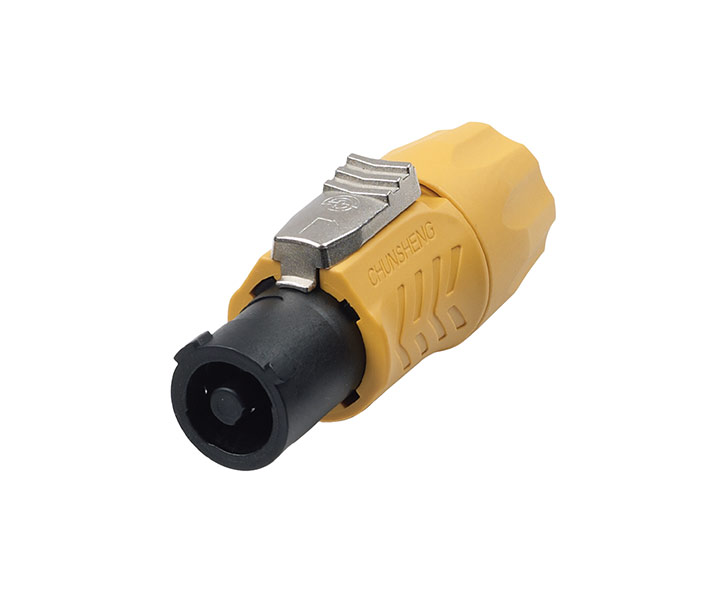

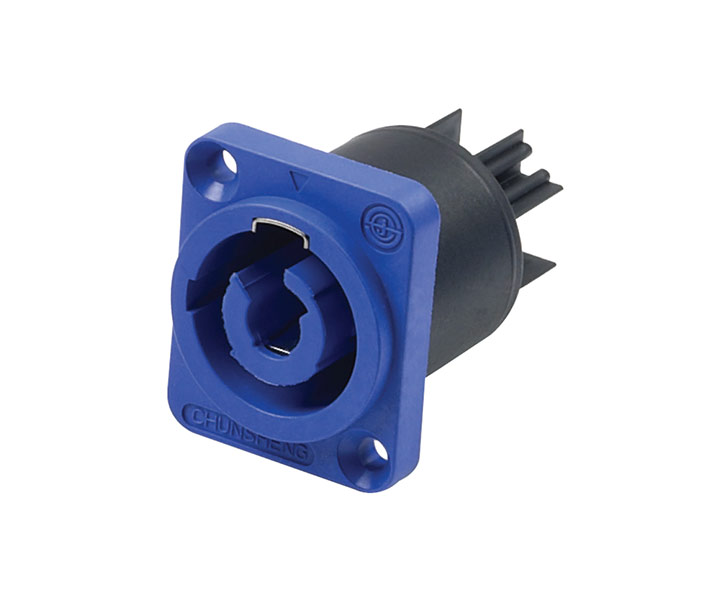

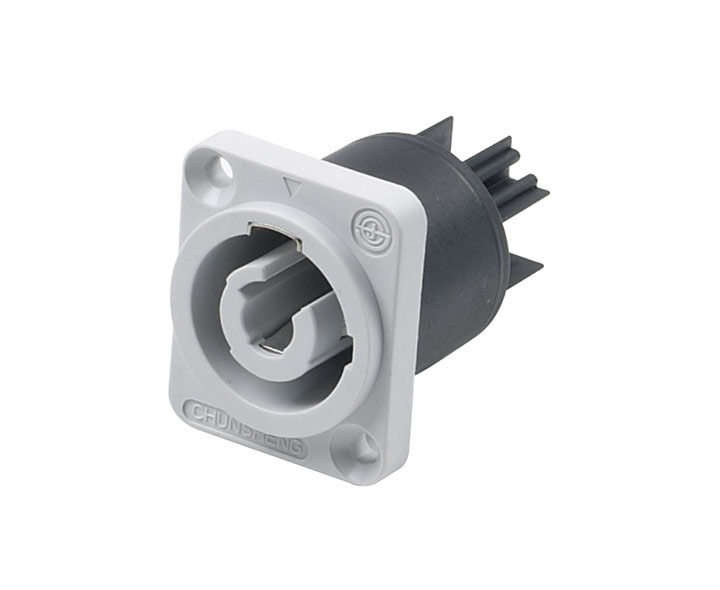

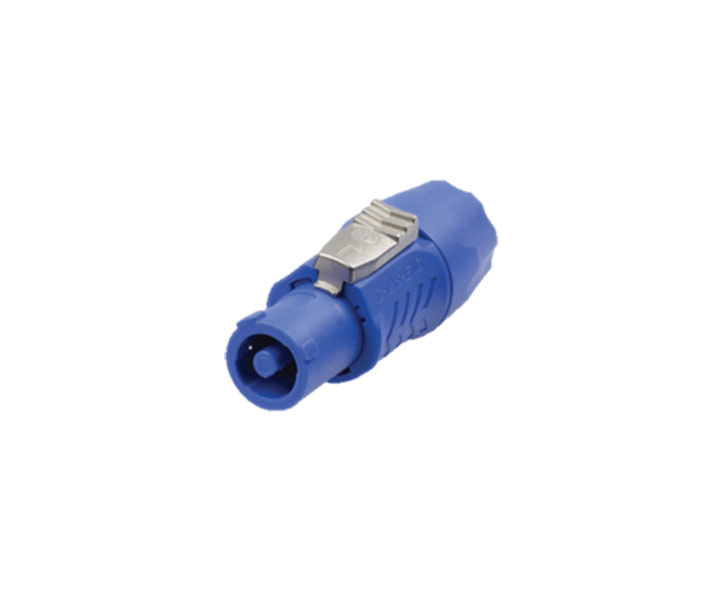

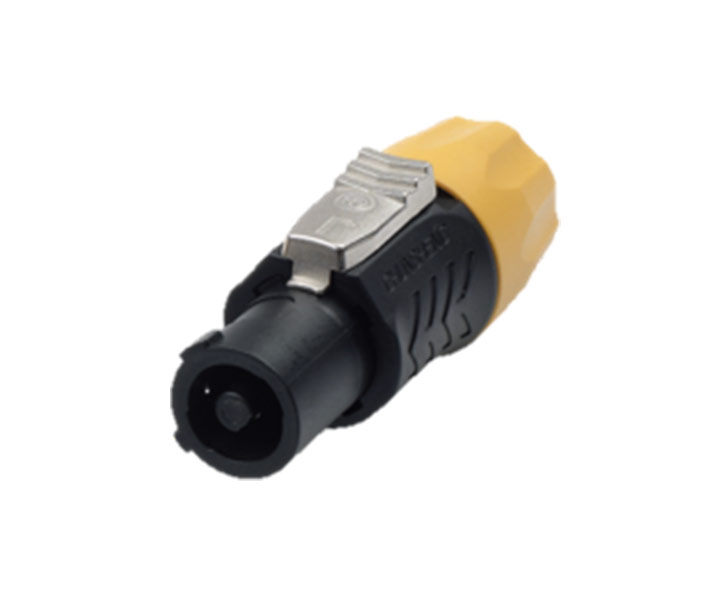

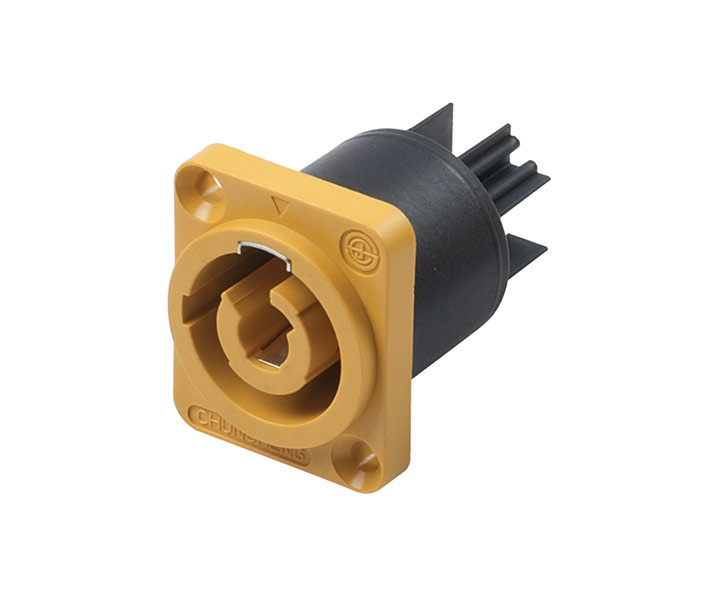

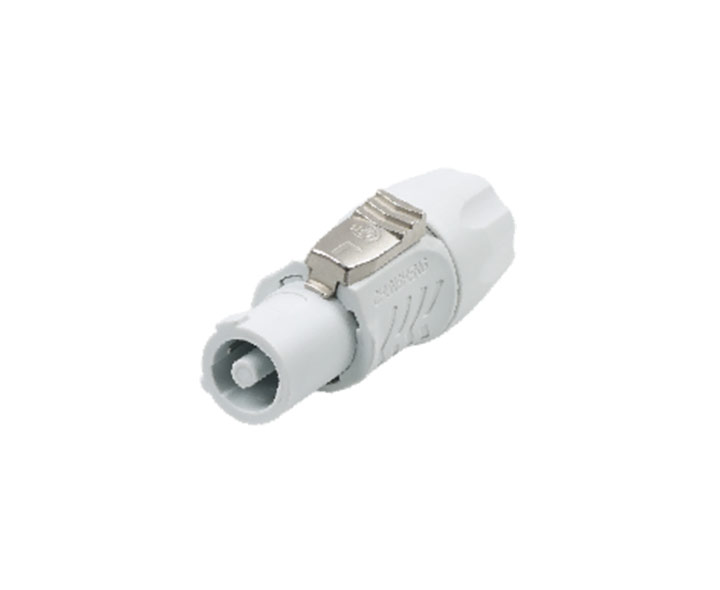

Power Aviation Plug Connector
Self-locking three-core device (AC) connector, easy to install
and reliable in connection.
  • Rated Current: 20A / 250V AC
  • Features different keying styles for input and output to prevent mismatching.
  • The plug-and-socket design is easy to operate, safe, and reliable.
  • Multiple component configuration options are available.
Product Specification
额定电流 Rated Current 20A AC(RMS)/DC
适配导线规格 Compatible WirSpecification 3mm²（AWG 12）.
额定电压 Rated Voltage 300V AC(RMS)/DC
绝缘电阻 Insulation Resistance 2000MΩ MIN
耐电压 Withstand Voltage 2500V/AC MIN
温度范围Temperature Range  -25°C TO +100°C
