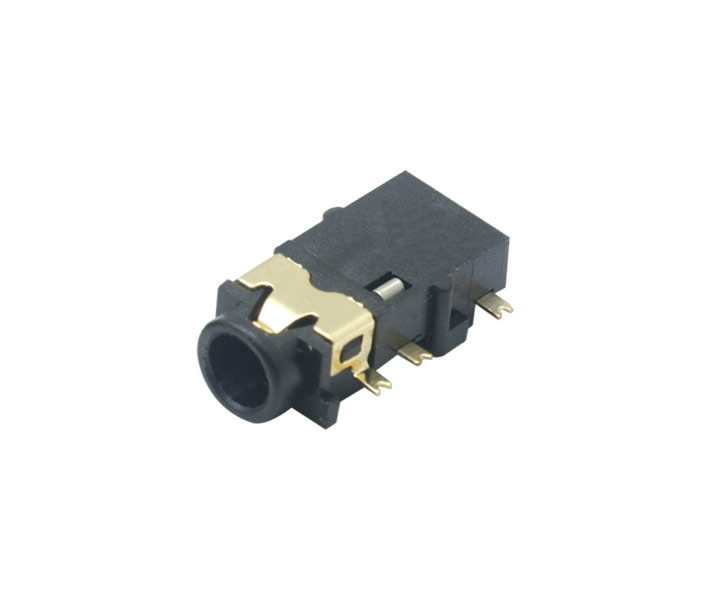

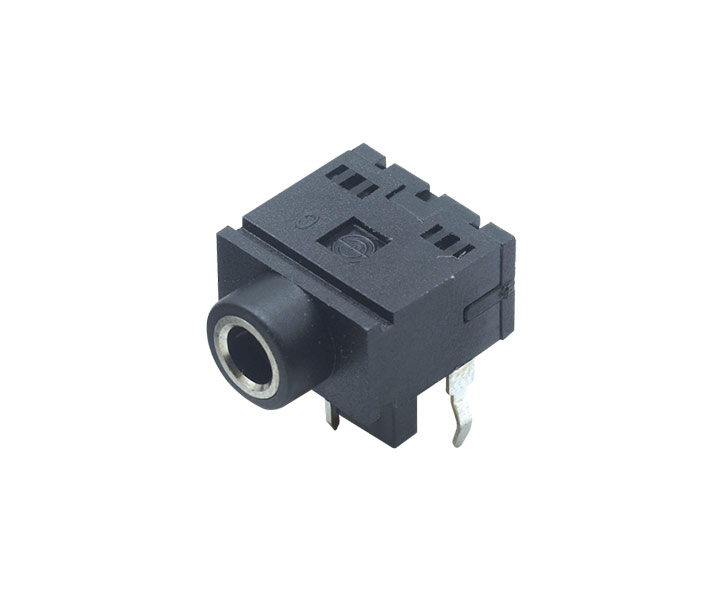

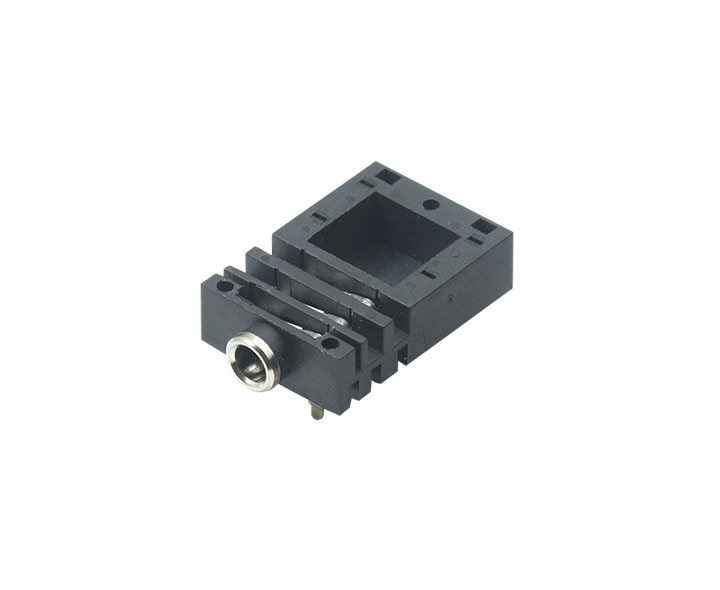

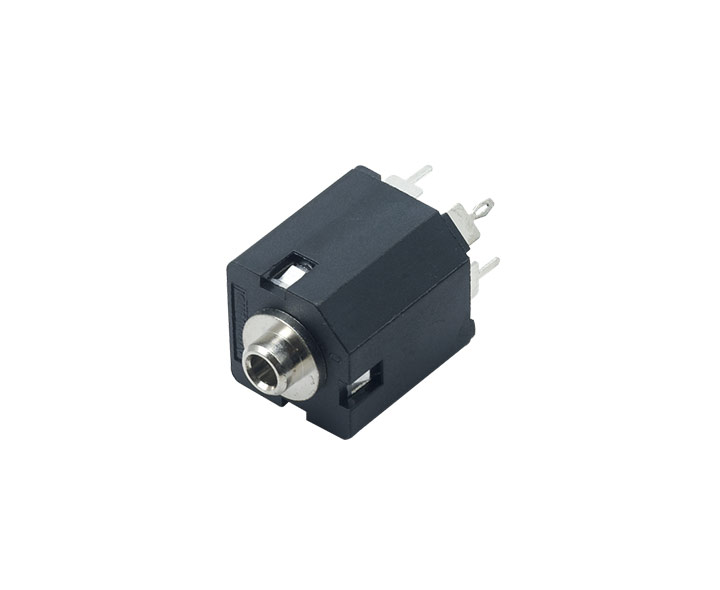

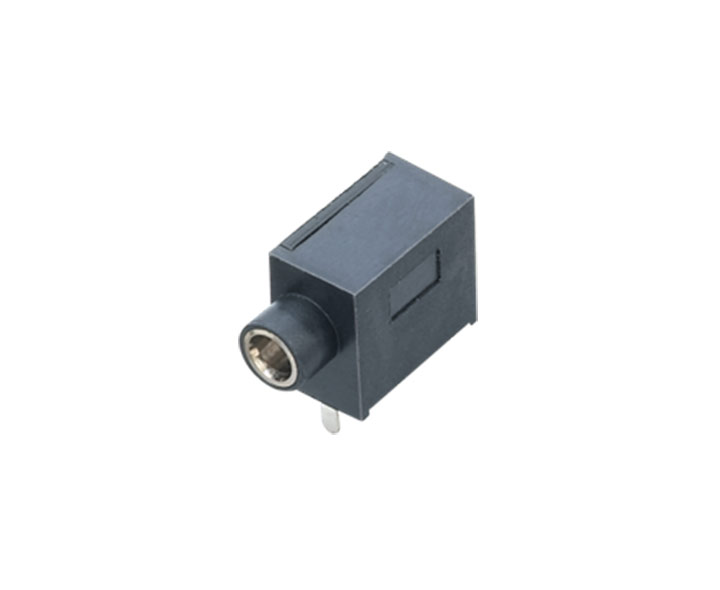

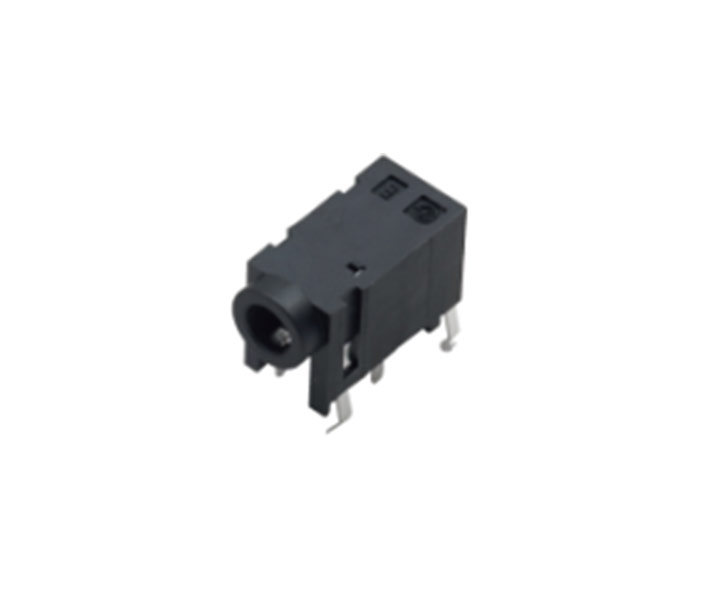

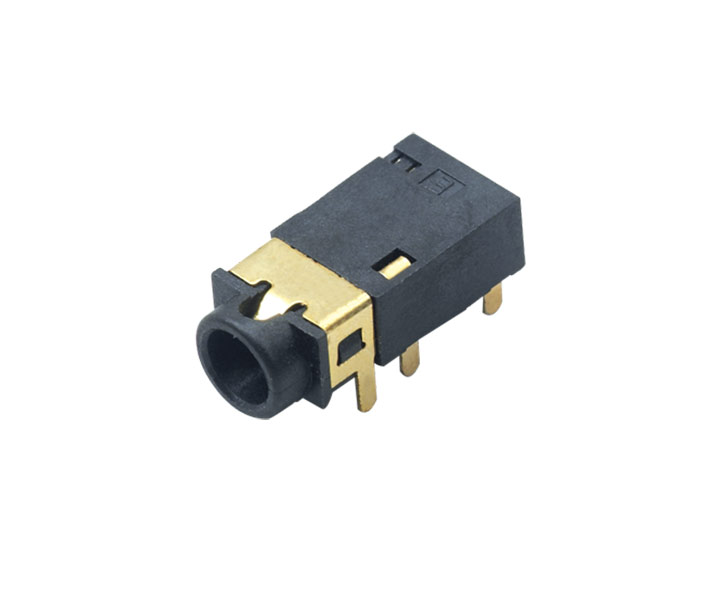

3.5mm Phone Jack
The 3.5mm Phone Jack is a standard interface that is widely used in various
audio devices. Its introduction has provided convenience for users and has
also made audio equipment more popular and interoperable.
  • There are options for mono and stereo channels, and installation methods include vertical, horizontal, DIP, PIP, SMT, and more. Different functional connection products can be designed according to customer requirements.
Product Specification
接触电阻 Contact Resistance 30mΩ Max
绝缘电阻 Insulation Resistance 100MΩ Min
耐压Withstand Voltage 500V DC/minute
温度范围Temperature Range  -20℃~+70℃
额定负荷 Rated Load 50V AC 0.5A
插拔力Insertion and Extraction Force 3N~30N
寿  命 Life 5000 Cycles
