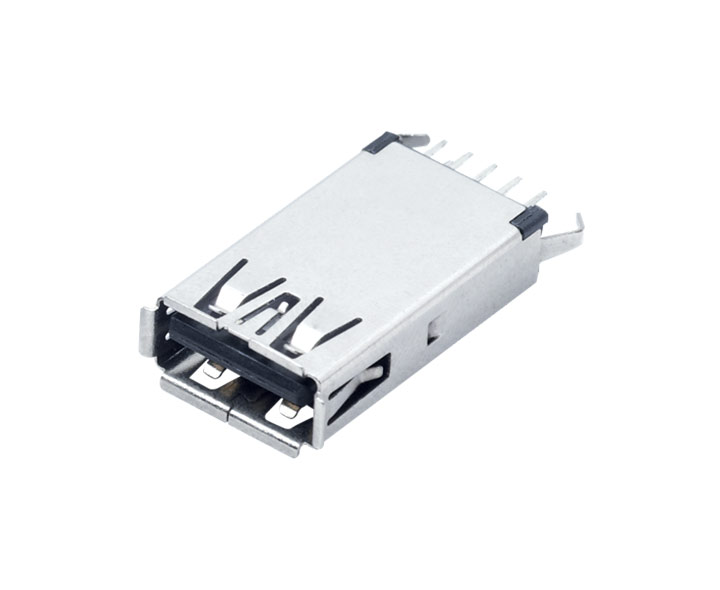

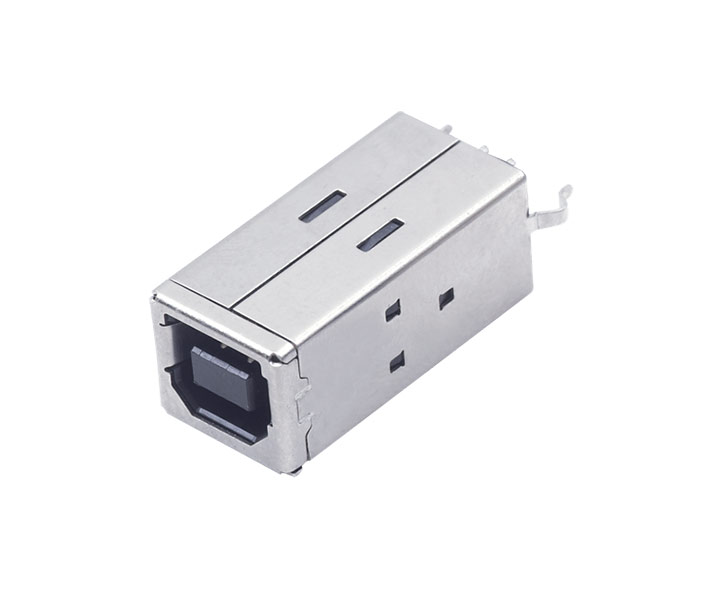

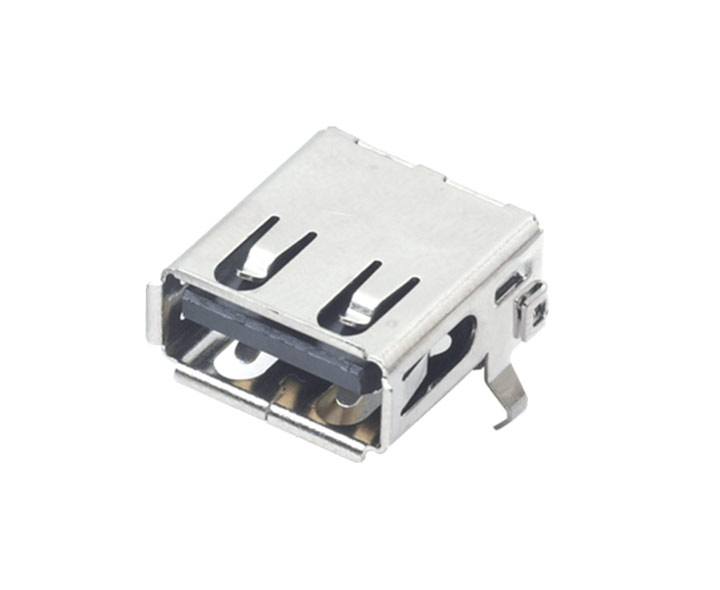

USB Connector
USB is the most widely used protocol in modern electronic devices.
Our company is a member of the USB-IF Association, with member
number: 9068. We have multiple products that have obtained TID
certification from the association.
  • Multiple interface options
  • Multiple parts configuration options
  • Versatile installation option
Product Specification
额定电流 Rated Currnet 1.5A
额定电压 Rated Voltage 30V
接触电阻 Contact Resistance 30mΩ Max.
绝缘电阻 Insulation Resistance 1000MΩ Min.
耐压 Withstand Voltage 500V
插入力 Insertion Force 35N Max.
拔出力 Withdrawal Force 10N Min.
机械寿命 Mechanical Life 1500次
工作温度 Temperature Range  -20℃ ~ +60℃
Application Scenarios
