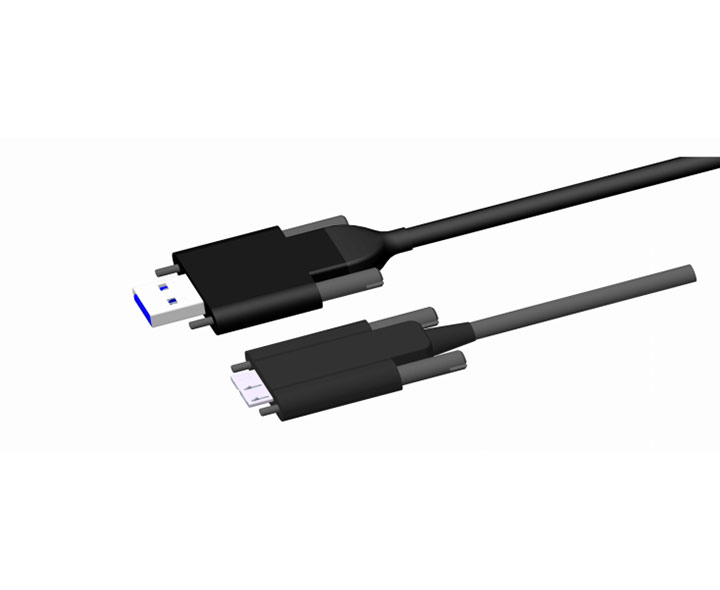

USB3.0 Electronic Optic Hybrid Data Extension Cable (A Male - MircoB)
  • Transmission rate
  • Anti-interference
  • Maximum transmission distance
  • Electricity supply
  • Plug and play
  • Low latency
  • Cable drag chain testing
  • Locking structure
Product Specification

Optional Customization Items

Manual Material, Content
Wrap Packaging Method, Packaging Printing
Connector Model Shape,Material,Color,Logo
Cable Cable Printing Content, Color, Diameter, Material, Drag Chain Performance


Technical Specification

Protocol Specification USB 3.0 Interface Model Host-side：USB 3.0 Type-A Male（Optional with Locking Retainer）
Transmission Rate 5 Gbps Device-side：USB 3.0 Micro-B Male (With Locking Retainer）
Cable Power Consumption 0.94W Electricity Supply Host-side：USB Bus Power Supply
Operating Voltage 5V Device-side：5V 900mA(15m），600mA(20m）
Cable Diameter Minimum 4.8mm Minimum Cable Bend Half Installation：75mm
Cable Length Options Maximum 50m Using：150mm
Operating Temperature -10℃-55℃ Number of Drag Chains 20 million times
Application Scenarios
