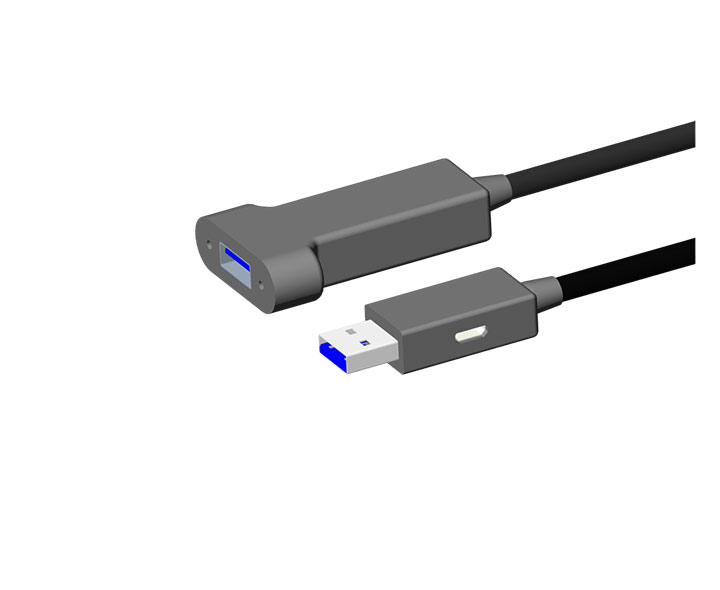

USB3.0 Electronic Optic Hybrid Data Extension Cable (A Male - A Female)
  • Transmission rate
  • Low latency
  • Maximum transmission distance
  • Electricity supply
  • Plug and play
  • Anti-interference
  • Cable drag chain testing
Product Specification

Optional Customization Items

Manual Material, Content
Wrap Packaging Method, Packaging Printing
Connector Model Shape,Material,Color,Logo
Cable Cable Printing Content, Color, Diameter, Material, Drag Chain Performance


Technical Specification

Protocol Specification USB 3.0 Interface Model Host-side：USB 3.0 Type-A Female（Screw Hole）
Transmission Rate 5 Gbps Device-side：USB 3.0 Type-A Male +USB 2.0 Micro-B Female
Cable Power Consumption 2.15W Electricity Supply Host-side：Port Power + Auxiliary Power
Operating Voltage 5V Device-side：Maximum（5V 900mA）
Cable Diameter Minimum 4mm Minimum Cable Bend Half Static：60mm
Cable Length Options Maximum 50m Dynamic：300mm
Operating Temperature -10℃-55℃ Compatibility Backward compatible with USB 2.0, USB 1.1
Application Scenarios
